Chapter 6. Installation Guide of True-touch Autoleveling Probe for Cetus MK3

Requirements:

1. Machine Extruder must use the V2 Fan shroud:

Cetus v2 fan shroud 0.2mm layer.STL

V1

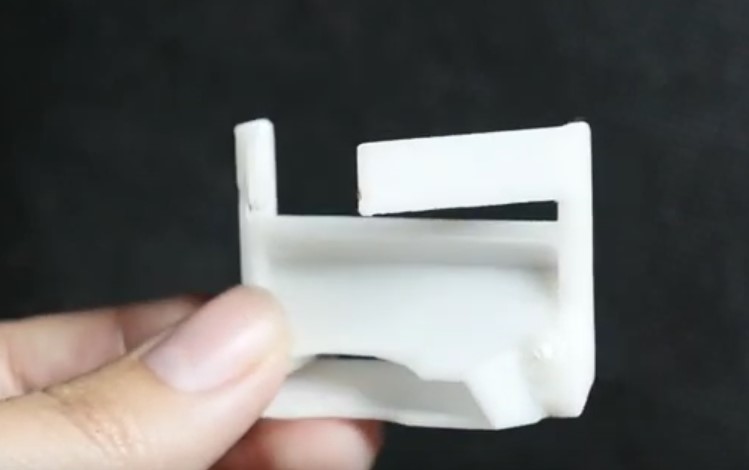

V2 (should be printed in direction that the vent is facing upward)

2.Extension PCB must be installed, please refer to this article

Cetus MK3 Upgrade Guide for Extension PCB

Auto leveling Probe includes Following Items：

1. The True-touch Probe.

2.探头连接器电缆。

Installation:

Video Giude:

Step by Step Guide:

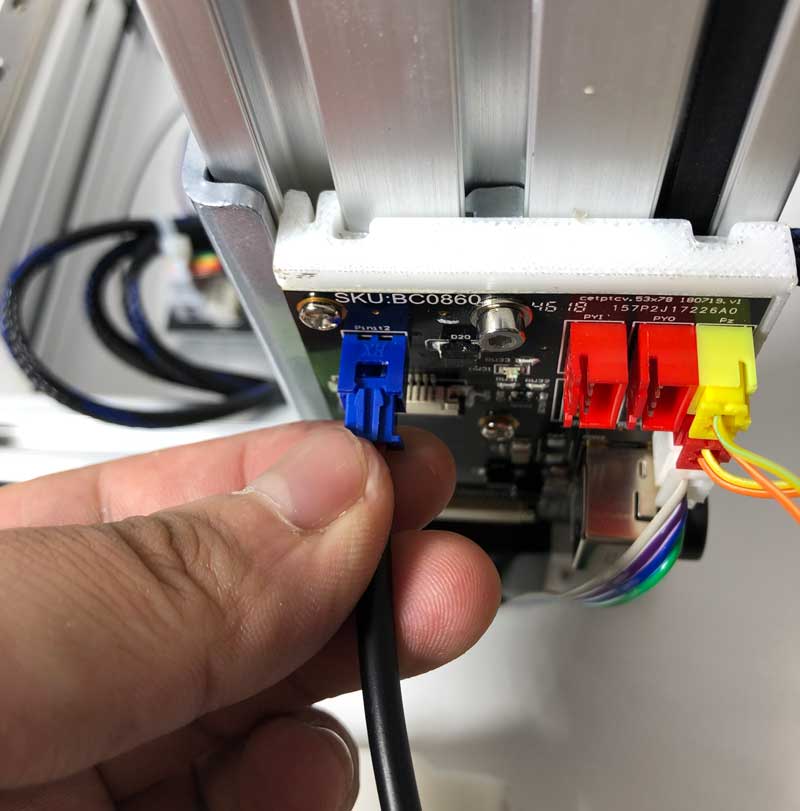

步骤1。连接to the Extension PCB

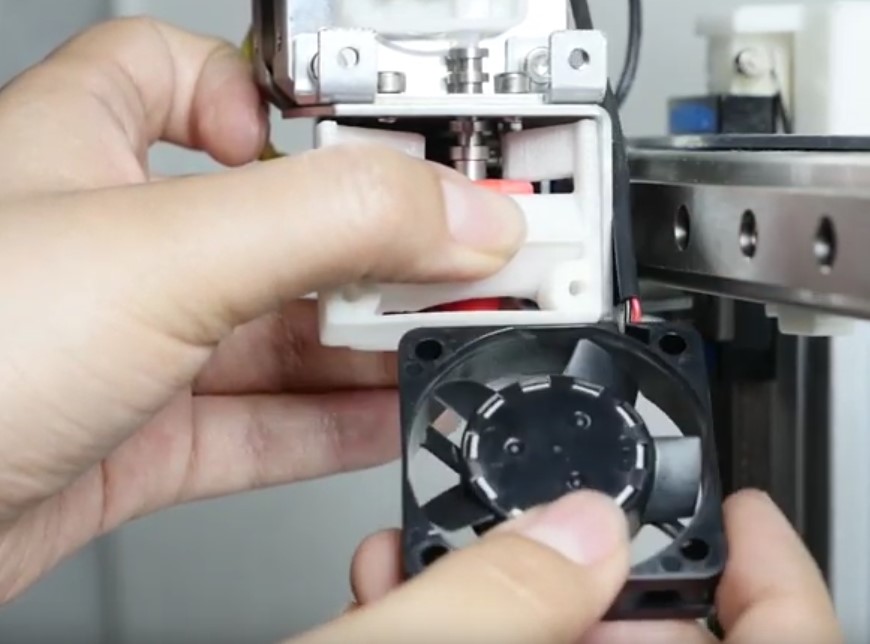

Step2. Change Fan Shroud to V2

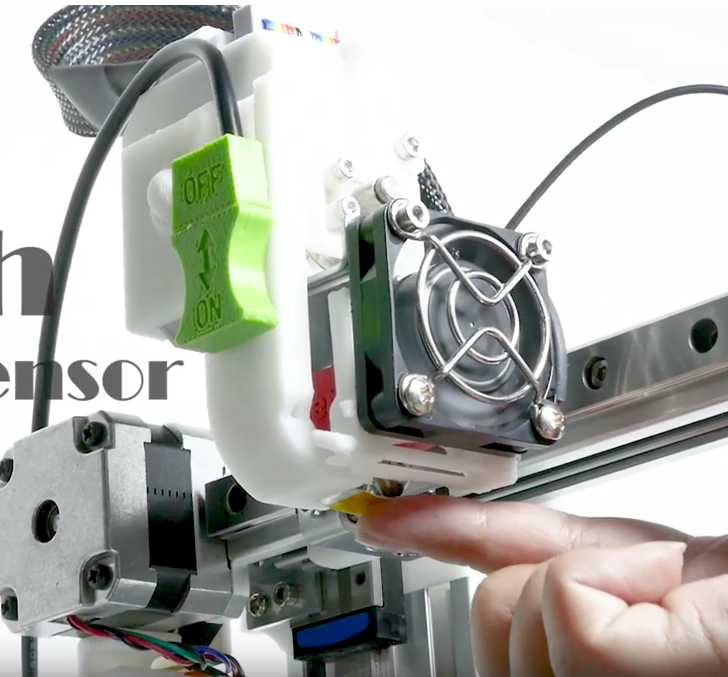

Step3. Attach Probe to Extruder

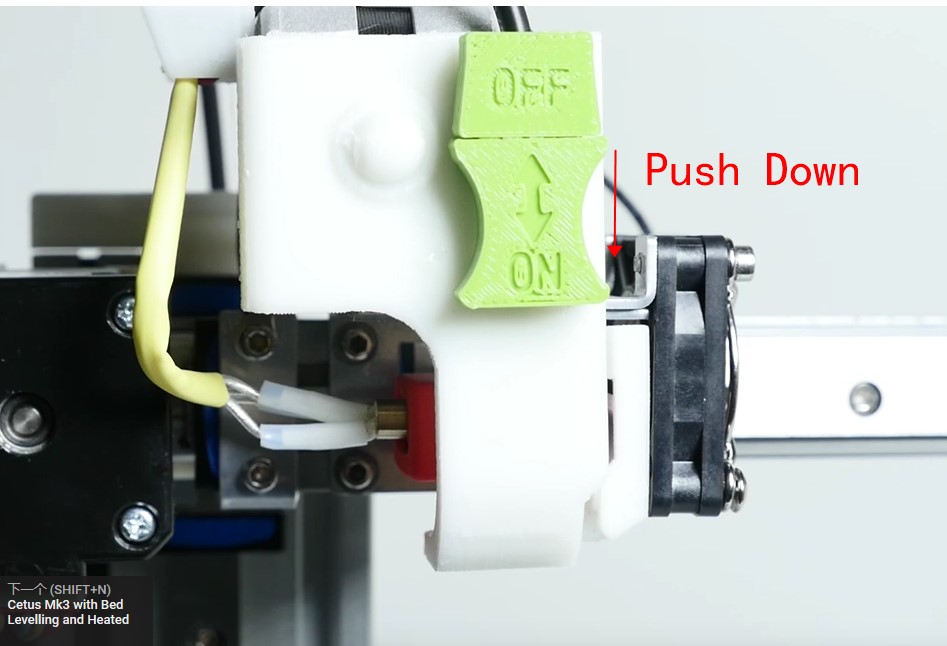

push down the green button to extrude the probe.

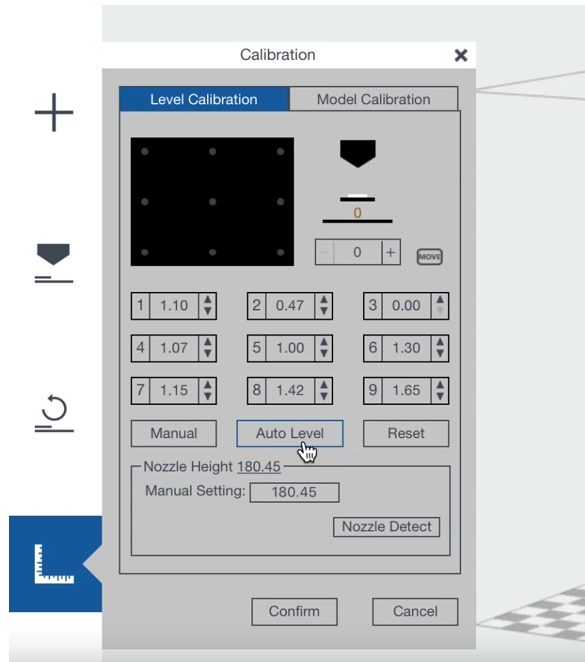

Step4. Use the Auto Level Function in UP Studio

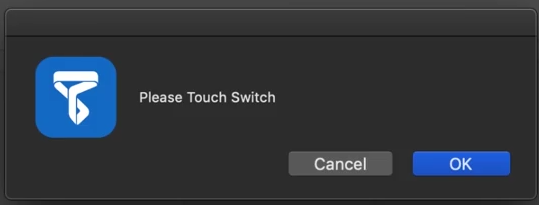

The software will instruct user to touch the leveling probe, after touching it against the nozzle, the measure measurement processs will be activated.

The Probe will be start to meausre the platform height at 9 points. Remove the probe from the extruder after the measurement. The compensation values and nozzle height will be automatically updated after the measurement.
