Chapter 1. Cetus MKIII 3D Printer Parts Introduction

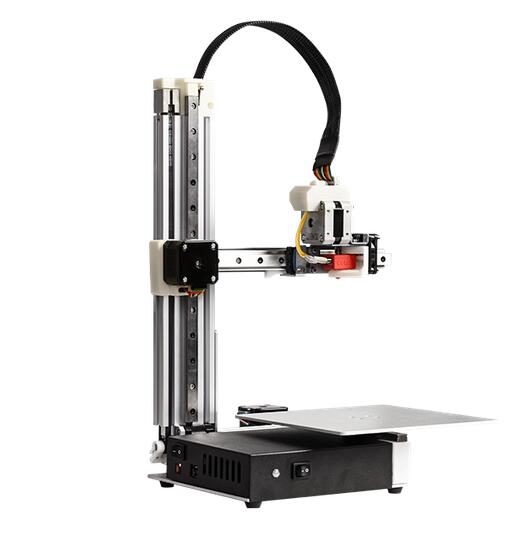

Cetus MK3 Standard Version Cetus MK3 Extended Version

1.1 Introduction to Cetus 3D MK3Printer Parts:

1.1.1The core components of the 3D printer include the CPU, Motherboard and Extension PCB.

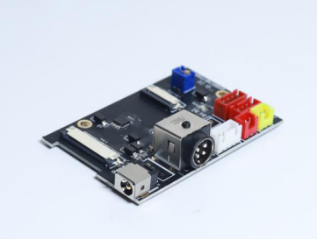

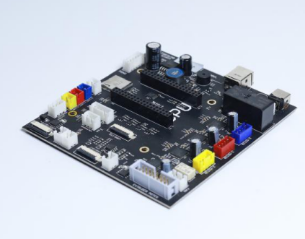

Mainboard		Extension PCB

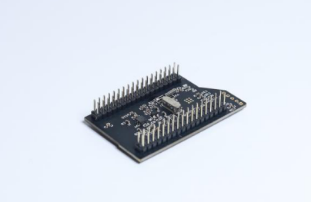

CPU

1.1.2 The main structure of the Cetus 3D Printer includes: X-axis assembly, Z-axis assembly, Y-axis assembly, control box housing, heated bed assembly, common print plate, 3D printer etruder, power cord, etc.

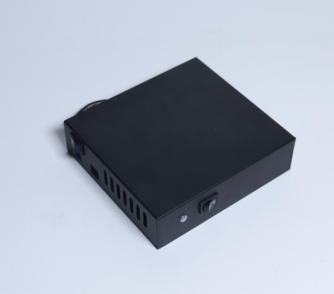

X-axis Assembly		Mainboard Casing

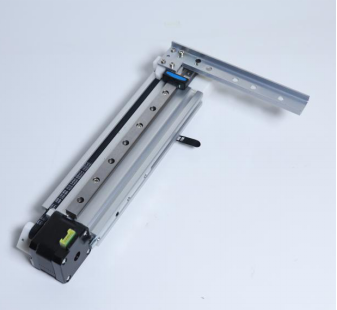

Z-axis Assembly		Y-axis Assembly

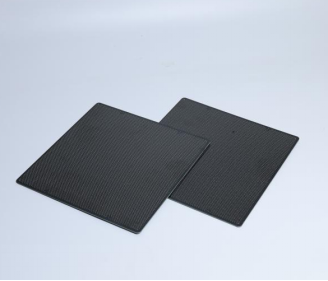

激烈的构建平台		Perforated Build Plate

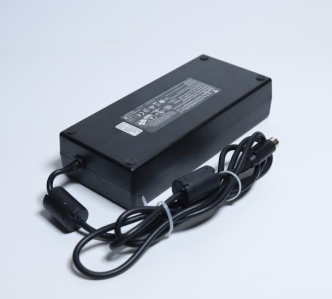

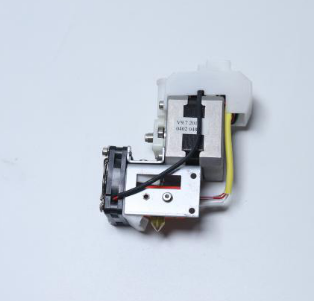

Extruder Unit		220W Power Supply Unit

1.2.3 3D Printer Parts

（1）Various Wiring harnesses for 3D printers

Extruder Cable WIFI Antenna Z-axis Motor Cable

Heated Build Plate cable X-axis Motor Cable USB Cable

（2）Flat Cable

Power Cable Motherboard Platform X-axis Limit Switch

Control FFC

Y/Z-axis limite Switch Adapter Cable Y-axis Motor Cable

（3）3D Printed Spare parts

Adapter Plate Cover FFC Baffle Z-axis End Cover with Limit switch cable
